Conax Multiple Element Feedthrough (MHC)

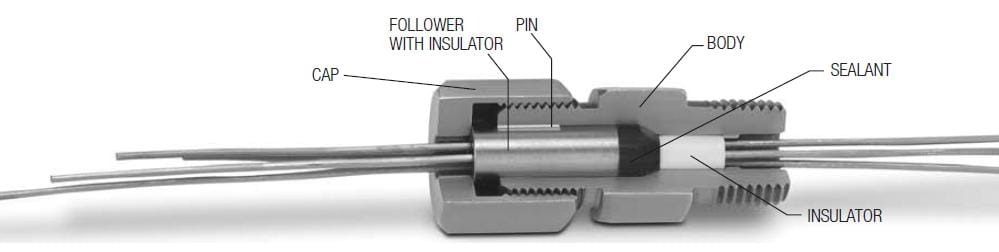

The MHC range of sealing glands are for passing mulitple elements through a single gland into a pressure or vacuum environment. Up to 24 elements as standard can be passed.

Examples of use include thermocouple, RTD's (PT100) or thermistor probes, or tube bundles. The elements can be individually adjusted in the field allowing different immersion depths, for example for measuring temperature at different points inside the process. For sealing different sized elements see the MHM range.

Remember that replacement sealants (RSC) and all internal components (RPS) are available as spares.

Product Features

  • All wetted parts in Grade 316 stainless steel.
  • Probe sealants in Teflon® or Viton®, Neoprene, Lava and Grafoil®
  • Temperature range from -240° to +870°C
  • Pressure range (@20°C) Vacuum to 690 bar
  • NPT process thread as standard and from 1/8"NPT to 1"NPT
  • BSPT, BSPP, SAE & Metric ISO threads available
  • Optional types of mounting arrangement, screwed, weld-neck or Tri-clover flange (for sanitary/hygienic applications).
  • Hole sizes from 0.5mm to 1/8" OD (seals 1 to 8 elements)
  • Replacement sealants are available to enable repeated use
  • Custom hole sizes and configurations available on 'MHM' range.
  • The MHC range of sealing glands is manufactured by Conax Technologies.
